Level Type 8131

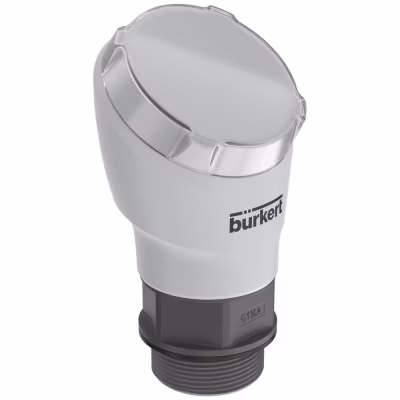

Burkert Radar Level Type 8131 is a non-contact radar level meter, ideal for continuous level measurement of liquids and bulk solids in basic applications. It is particularly suitable for storage tanks, water treatment applications (open channel measurement) as well as through plastic tanks. For solids, it can be used in small silos or open tanks. The radar level meter, available in 1 1/2″ with G, NPT or R connection, is equipped with a plastic housing and a plastic integrated antenna. The excellent focus of the radar signal and the high measurement dynamics allow excellent measurement results even in small, narrow and high containers, as the risk of signal interference by installations, constructions and vessel walls is significantly reduced. Signal damping, e.g. due to signal length, foaming or low dielectric constant values of liquids, becomes much less important.
- Continuous filling level measurement up to 120 m, 4…20 mA, 2-wire
- Available process connections: mounting bracket, thread (G, NPT ¾ and 1½), flange (DN50, 2″ ASME), clamp (2″)
- Excellent radar signal focusing and high measurement dynamics
- Adjustable via the display/configuration module and keys, alternatively via Bluetooth
