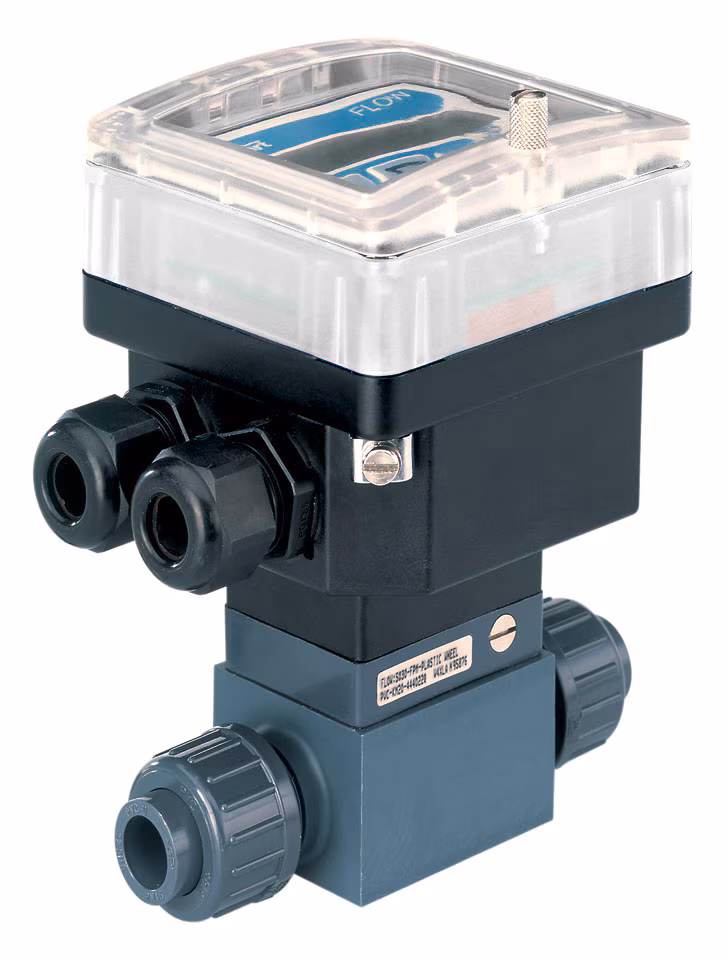

Paddle Wheel flowmeter
Burkert Type 8035 with paddle wheel is specially designed for use in neutral or mildly aggressive, particle-free liquids. The device is available as a flowmeter or batch controller. The device consists of a compact inline sensor-fitting with paddle wheel (Type S030) and a transmitter with display (Type SE35). Assembly is quick and simple thanks to a mounting/bayonet catch system. Burkert’s Inline Quarter-Turn? technology guarantees leak-free operation. Burkert’s proprietary sensor fitting system ensures simple installation of the devices into all pipelines from DN 06 to DN 65. The flowmeter is available as a variant with either a standard signal output or as battery-operated display/totaliser with no output.
Up to PN 16, measurement tube size DN 06 to DN 65
Display for indication of flow rate and volume with two totalizers or dosing
Automatic calibration using Teach-in
Inputs (with batch controller) and all outputs can be checked without the need for actual flow
Total and day counters for batch quantity and number of dosing, volume or mass counter indicator (with batch controller)
