Compression Spring: LC 020B 04 M, LC 022A 09 M, LC 026BB 12M

Standard Compression Series (inch) Compression Springs.

Selection to Match Your Nseed.

Lee Spring LC 020B 04 M.

Lee Spring LC 020B 04 M is a precision compression spring from the Standard Compression Series (inch), engineered for applications requiring reliable quality compression springs. This spring features an 0.18-inch outside diameter (4.57 mm) with a 0.188-inch hole diameter (4.78 mm) and extends to a free length of 0.438 inch (11.13 mm). Made from Music Wire with a 0.02-inch wire diameter (0.51 mm), the spring delivers a spring rate of 11 lb/inch (1.926 N/mm) through its 5.33 active coils out of 7.33 total coils for predictable deflection behavior.

The spring compresses to a solid height of 0.16 inch (4.06 mm) while supporting a maximum load of 3 lb (13.34 N) at full compression. The spring has Squared and Ground ends and a Zinc Plate and Bake per ASTM B633 finish for optimal performance.

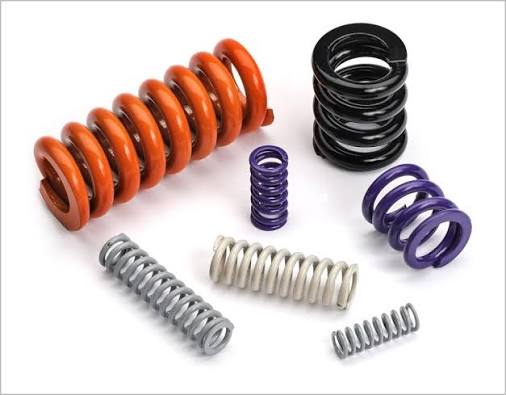

Lee Spring LC 022A 09 M.

Lee Spring LC 022A 09 M is a precision compression spring from the Standard Compression Series (inch), engineered for applications requiring reliable quality compression springs. This spring features an 0.12-inch outside diameter (3.05 mm) with a 0.125-inch hole diameter (3.18 mm) and extends to a free length of 0.75 inch (19.05 mm). Made from Music Wire with a 0.022-inch wire diameter (0.56 mm), the spring delivers a spring rate of 20 lb/inch (3.503 N/mm) through its 18.67 active coils out of 20.67 total coils for predictable deflection behavior.

The spring compresses to a solid height of 0.451 inch (11.46 mm) while supporting a maximum load of 6 lb (26.69 N) at full compression. The spring has Squared and Ground ends and a Zinc Plate and Bake per ASTM B633 finish for optimal performance.

Lee Spring LC 026BB 12M.

Lee Spring LC 026BB 12M is a precision compression spring from the Standard Compression Series (inch), engineered for applications requiring reliable quality compression springs. This spring features an 0.188-inch outside diameter (4.78 mm) with a 0.203-inch hole diameter (5.16 mm) and extends to a free length of 1 inch (25.4 mm). Made from Music Wire with a 0.026-inch wire diameter (0.66 mm), the spring delivers a spring rate of 12.2 lb/inch (2.137 N/mm) through its 12.87 active coils out of 14.87 total coils for predictable deflection behavior.

The spring compresses to a solid height of 0.398 inch (10.11 mm) while supporting a maximum load of 7.683 lb (34.18 N) at full compression. The spring has Squared and Ground ends and a Zinc Plate and Bake per ASTM B633 finish for optimal performance.

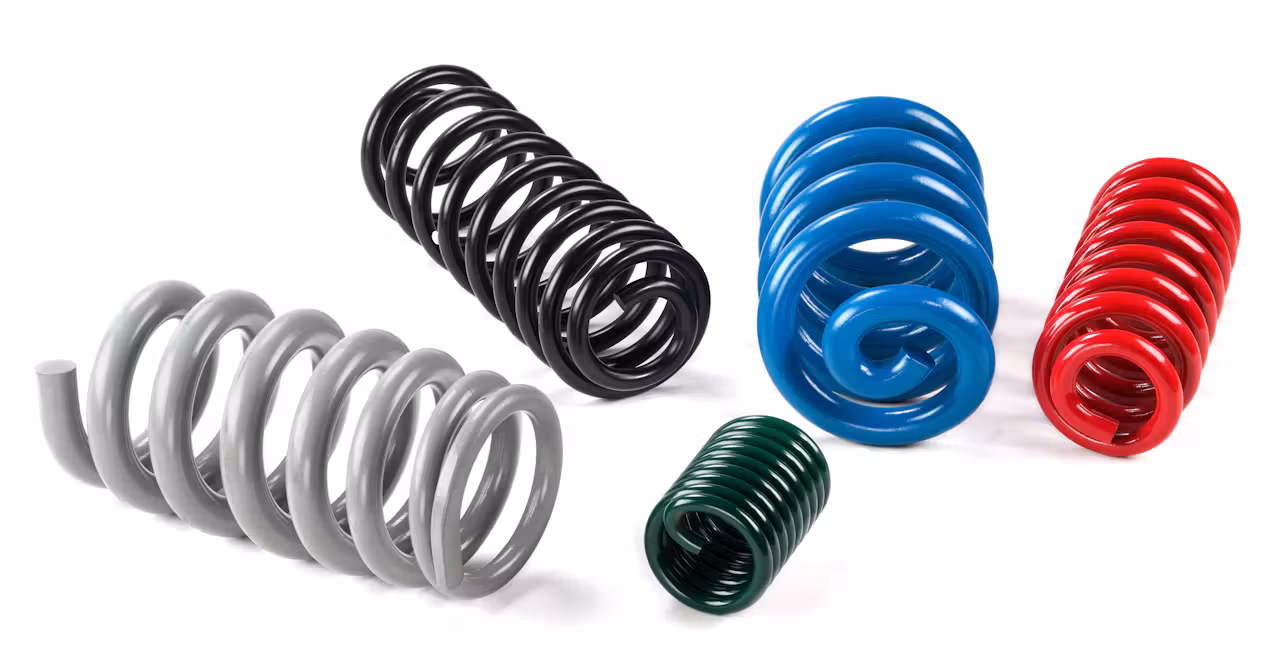

About the Standard Compression Spring Series.

The Lee Spring Standard Compression Spring line includes a wide range of size and rate combinations. Selections are sorted in ascending order to mating hole/bore diameter sizes. Standard Compression Springs are available in both standard and metric series. Standard Series springs are available in Music Wire, Type 302 Stainless Steel and Type 316 Stainless Steel. Metric Series springs are available in Music Wire and Type 302 Stainless Steel. The Music Wire springs are provided with a plating finish for light corrosion resistance.

The Type 302 Stainless Steel springs are passivated, while Type 316 Stainless Steel springs are passivated and ultrasonically cleaned. Lee Spring Standard Compression Springs feature squared and ground ends. A squared end, also called a closed end, is made by reducing the coil pitch of the ends to zero. Squareness influences how a force produced by the spring can be transferred to adjacent parts. The ground ends provide flat bearing surfaces and additional stability.

Standard Compression Series (inch) Compression Springs have useful applications in various industries, including:

• Medical devices
• Firearms
• Pharmaceutical delivery devices
• Lighting and electrical control
• Petro-chemical processes
• Communication devices
• Aerospace
• Testing and measurement equipment
• Marine applications
• Automotive
• Locks and security devices
• Precision Instruments
• Hardware

…and many more applications
