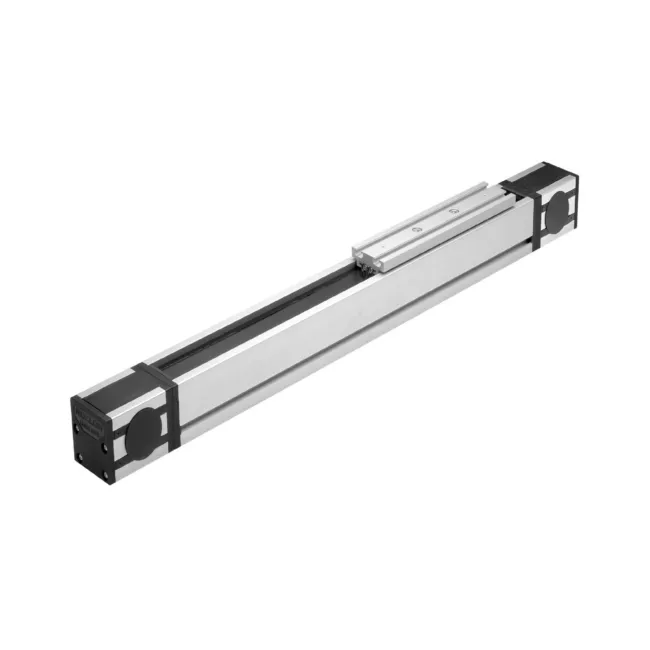

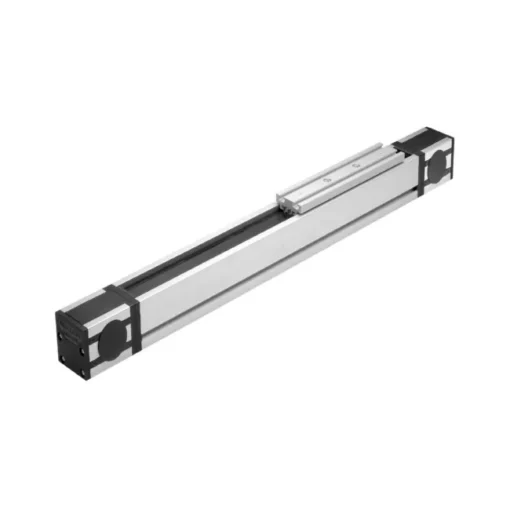

Cost saving” linear actuator with speed and acceleration up to 7 m/s and 15 m/s?.
Available Sizes
40 55 75
Movement provided by a linear roller guide and a toothed belt
Linear unit made to order with customized stroke
Technical file with calculation notice supplied on request
Particularly suitable for configurations in which two units are mounted in parallel
In single-axis configuration, to be reserved for moderate load cases
Suitable for automatic cycle operation at high working rates and moderate loads
Protection of the unit by longitudinal seals for operation in a dirt environment
Drive torque transmission to the pulley by means of a keyed hollow shaft
Assembly kits available for creating multi-axis X-Y-Z / Y-Z / X-Y systems
Available in ?anti-corrosion? version for wet environments
Operating temperature range from -20C to + 80C
Liên hệ.
Các bạn có thể tham khảo thêm sản phẩm bằng cách nhấp vào : CATALOGUE
Hãy liên hệ CTI SUPPLY – nhà phân phối Rollon tại Việt Nam để được hỗ trợ kỹ thuật và gửi báo giá nhanh nhất. Đội ngũ CTI SUPPLY rất hân hạnh được hỗ trợ quý khách hàng! Hotline: 0906.494.486 ; Email: sales@ctisupply.vn
